Some animations of interest
SDASL BU structure tested with Digital Image Correlation and Dynamic Photogrammetry
Optical measurements for Digital Image Correlation (DIC) and Dynamic Photogrammetry (DP) with correlation to a finite element model

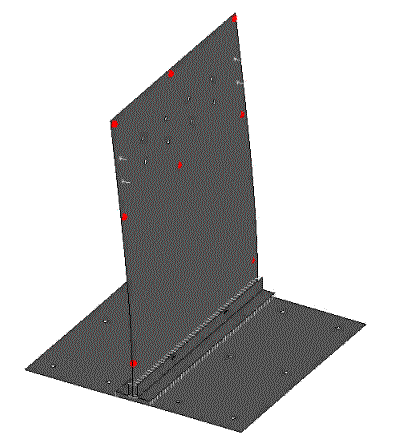

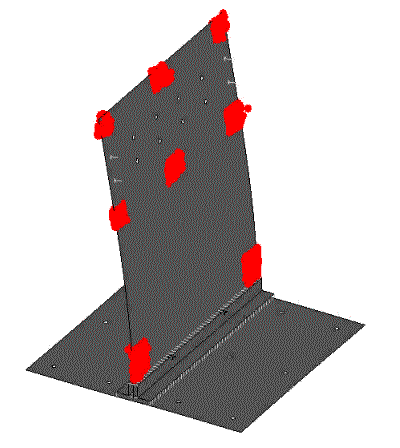

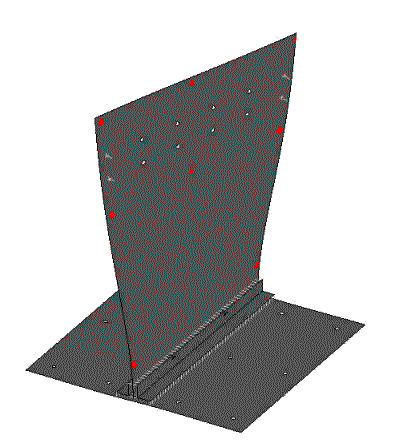

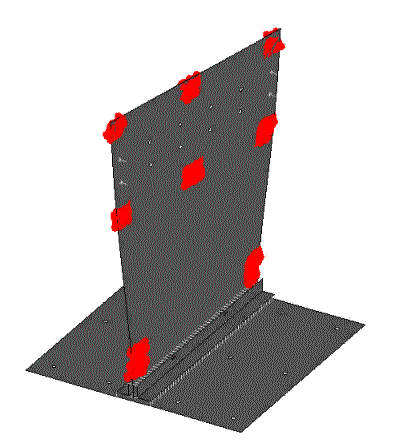

1 - DIC patch bending mode shape, 2 - DIC patch twisting mode shape, 3 - DP bending mode shape, 4 - DP twisting mode shape
![1-AFm1 1-AFm1](/Images/1-AFm1_tcm18-284075.gif)
![2-AFm3 2-AFm3](/Images/2-AFm3_tcm18-284076.gif)
![3-PFm1 3-PFm1](/Images/3-PFm1_tcm18-284077.gif)
![4-PFm3 4-PFm3](/Images/4-PFm3_tcm18-284078.gif)
