Early Turbine Blade Animation
Optical measurements for small rotating wind turbine blades. Both fully rotating and with rigid body motion removed. In plane x and out of plane z motions captured and identified separately.

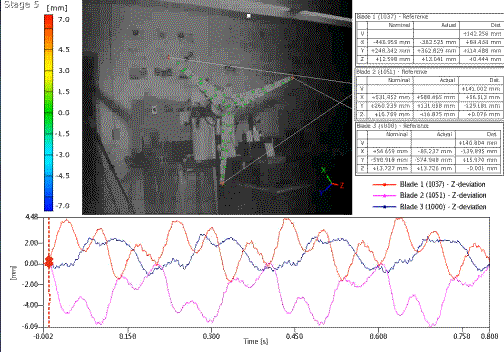

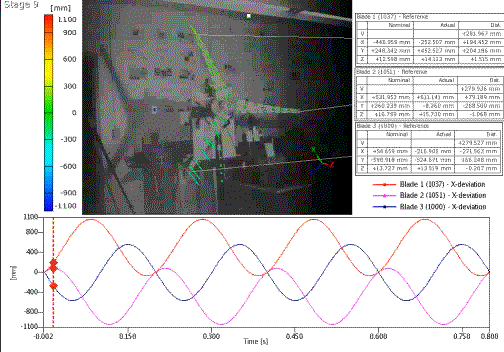

1 - Point tracking inplane motion while rotating, 2 - Point tracking inplane motion - derotated, 3 - Point tracking out of plane motion while rotating, 4 - Point tracking out of plane motion - derotated
